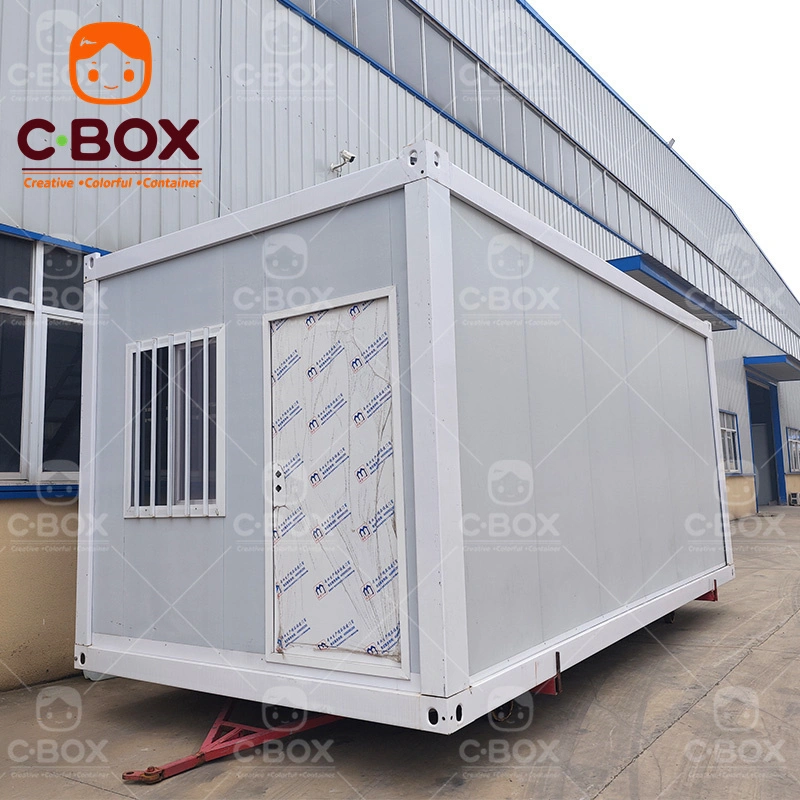

Temporary Modular Prefab Container Home for Housing
Discover the convenience of our Temporary Modular Prefab Container Home for Housing. Designed for quick setup, durability, and comfort, ideal for short-term or emergency accommodations.
About Us
Guangdong Cbox Co., Limited. which covers 350,000 square meters and has an annual output of 200,000 containers, focusing on designing and developing, producing, selling, installing, operating, and serving as a whole, providing one-stop box rental and manufacturing for customers.
C.Box covers a series of products such as steel structure workshops, flat pack container house, modified shipping container house, detachable container house, folding container house, expandable container house, portable ion, installation, Services, and other one-stop solutions.
After 15 years of hard work by the company's core team, it has obtained 46 invention patents and utility model patents.
We take the need of customers as the base, green safe, economical, and comfortable living experience as the root and development of the industry as the purpose.
Product Specifications
|
Product Specifications |
Folded Height |
H=440mm 40HQ can load 10 sets |
|
L*W*H(mm) |
5830mm*2500mm*2470mm |
|
|
Roof Form |
Flat Roof |
|
|
Number Of Layers |
≤2 layers |
|
|
Structure |
Column |
Specification 50mm*160mm |
|
Roof Main Beam |
Specification 50*160mm |
|
|
Roof Secondary Beam |
Galvanized Cold Rolled Section Steel C Type |
|
|
Ground Main Beam |
Height 50*140mm |
|
|
Ground Secondary Beam |
Galvanized Cold Rolled Section Steel C Type |
|
|
Bolt |
8.8 Class High-Strength Bolts, 6 |
|
|
Paint |
Electrostatic spraying plastic powder baking varnish ≥80μm |
|
|
Roof |
Roof Panel |
EPS Color Steel Sandwich Panel |
|
Ground |
Substrate |
18mm Fireproof Glass Magnesium Board |
|
Wall |
Insulation Cotton |
50mm Thickness Color Steel EPS Sandwich Panel |
|
Color steel Plate |
Panel Coler Streel Plate Thickness 0.4mm |
|
|
Door |
Specification |
Width×Height=840mm*1900mm |
|
Material |
Steel Door |
|
|
Window |
Specification |
950mm*1100mm |
|
Fram Material |
Plastic Steel |
|
|
Glass |
Single Layer Glass |
Discover the convenience of our Temporary Modular Prefab Container Home for Housing. Designed for quick setup, durability, and comfort, ideal for short-term or emergency accommodations. As a modular prefab house, it offers the flexibility of a temporary housing container, making it perfect for modular temporary housing needs. Additionally, it serves as an excellent mining accommodation container solution. Embrace the benefits of a prefab container home that combines efficiency and comfort in one practical package.
Feature of Fold Out Geothermal Flat Pack House
Quick Assembly and Disassembly: This prefab container home can be set up or taken down swiftly, making it suitable for rapidly changing circumstances or emergency situations.
Durability: Built to last, the modular prefab house is designed to withstand harsh conditions, ensuring a reliable and safe living space.
Comfort: Despite being a temporary housing container, it offers a comfortable and practical living environment.
Versatility: Ideal for various applications, including modular temporary housing and mining accommodation container solutions.
Cost-Effective: Provides an affordable housing option without compromising on quality or functionality.
