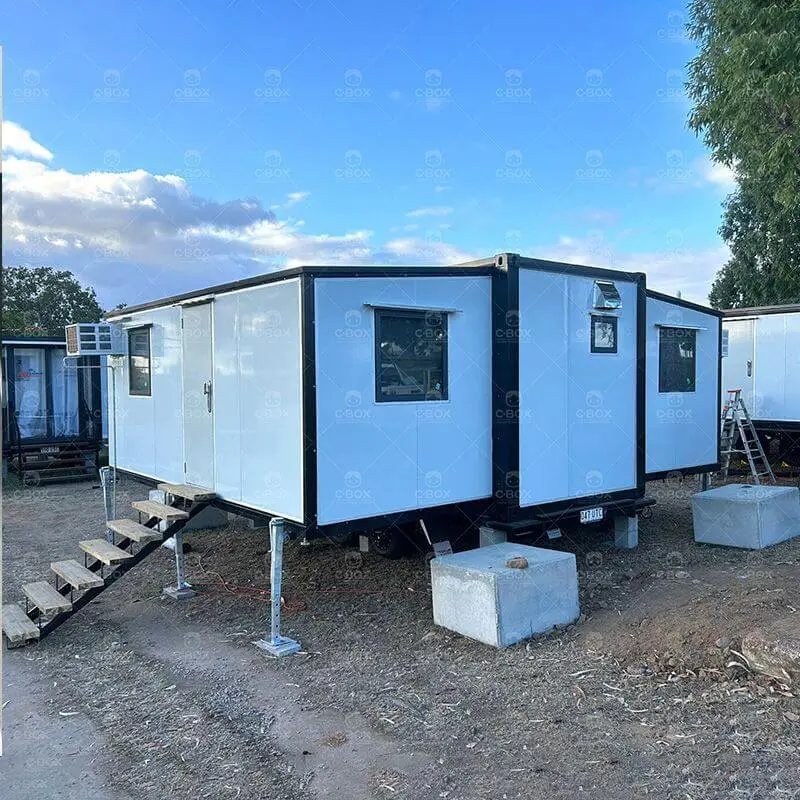

Expandable Container Camp with Double Wing
Feature of the expandable container house:
Spacious Design: The double wing folding house design offers ample living space, enhancing comfort and usability.
Portability: As a 20ft expandable portable home, it can be easily transported to various locations, providing flexibility for different accommodation needs.
Versatility: Suitable for a range of applications, including as an expandable living house or an expandable container camp.
Quick Assembly and Disassembly: This expandable prefab container house can be set up or taken down swiftly, making it suitable for rapidly changing circumstances or emergency situations.
Cost-Effective: Utilizing an expandable container camp structure provides an affordable solution compared to traditional housing options.
☞☞☞Click this link to view more videos from CBOX’s YouTube!
Material List
| Steel Structure | List | Part Name | Specification |
| 1 | Steel column | Steel panel 3mm thickness bend part | |
| 2 | Main bottom beam | 150*75*3.0mm | |
| 3 | Main top beam | 12#*6mm | |
| 4 | Secondary beam | 80*80*2.0mm | |
| 5 | Panel | Galvanized steel corrugated sheet 1.0mm | |
| 6 | Bottom frame purlin | 80*40*2.0mm | |
| Panel, Door, and Window | 7 | Ceiling | 1150*50*0.326mm double-side Choi foam sandwich panel |
| (White and grey) | |||
| 8 | External wall panel | Bending piping 2.5mm+1150*50*0.326mm 0.326mm double side Choi foam sandwich panel | |
| (White and grey) | |||
| 9 | Floor | Fireproof panel 15mm (yellow) +PVC grain board | |
| 10 | Door panel | 304 SS door (primary colors)
W*H: 1520mm*2200mm, 1 set |
|
| 11 | Sliding window | Aluminum alloy sliding window (white)
W*H: 930mm*1200mm, 8 sets |
About CBOX
32,000 m PRODUCTION BASE & OVER 1200 STAFFS
We are the first and only prefab house supplier using a fully automatic production line in China
Guangdong Cbox Co., Ltd, which covers 350,000 square meters and has an annual output of 200,000 containers (500+ sets per day), focuses on designing and developing, producing, selling, installing, operating, and serving as a whole, providing one-stop box rental and manufacturing for customers.
After 17 years of hard work by the company’s core team, it has obtained 46 invention patents and utility model patents. The workshop is equipped with automated robotic arms to reduce labor costs and reduce costs for customers.
Guangdong Cbox Co., Limited has 29 factories, and the product categories produced include flat-pack container houses, detachable container houses, detachable flat pack container houses, foldable container houses, slide folding container houses, portable toilets, etc.
We take the need of a customer as the base, green safe, economical, and comfortable living experience as the root and development of the industry as the purpose.
With the support of automatic manipulators and excellent sales engineers, CBOX is confident that we can meet the requirements of customers on quality, quantity, and even technical guidance.
Comfortable and Stylish
