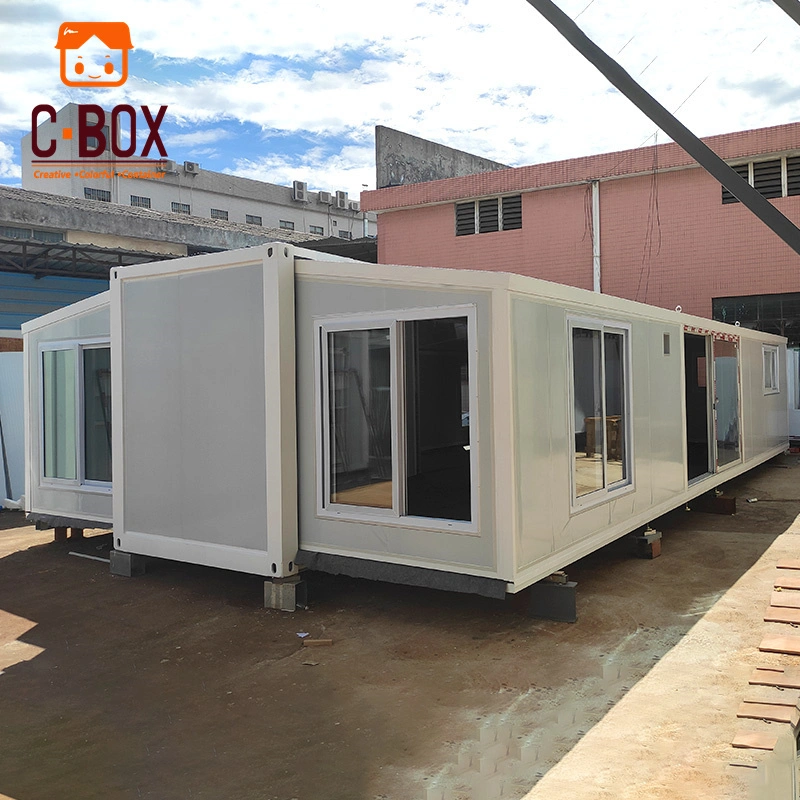

40ft Expandable Tiny House: Modular Container House with Prefab Design
Feature of the expandable tiny house:
Compact and cozy: The 40ft expandable container house offers a minimalist and comfortable living space that can suit any lifestyle.
Expandable and contractable: instant expandable homes can be easily adjusted to fit different spaces and needs. You can expand them to get up to 80 square meters of living space or contract them to save space and transportation costs.
Prefab and modular: modular container houses are made of pre-assembled and standardized units that can be easily delivered and installed. They are also easy to disassemble and relocate as needed.
Durable and eco-friendly: modular containers houses are made of high-quality and insulated materials that can withstand different weather conditions and reduce energy consumption.
☞☞☞Click this link to view more videos from CBOX’s YouTube!
Material List
| Steel Structure | List | Part Name | Specification |
| 1 | Steel column | Steel panel 3mm thickness bend part | |
| 2 | Main bottom beam | 150*75*3.0mm | |
| 3 | Main top beam | 12#*6mm | |
| 4 | Secondary beam | 80*80*2.0mm | |
| 5 | Panel | Galvanized steel corrugated sheet 1.0mm | |
| 6 | Bottom frame purlin | 80*40*2.0mm | |
| Panel, Door, and Window | 7 | Ceiling | 1150*50*0.326mm double-side Choi foam sandwich panel |
| (White and grey) | |||
| 8 | External wall panel | Bending piping 2.5mm+1150*50*0.326mm 0.326mm double side Choi foam sandwich panel | |
| (White and grey) | |||
| 9 | Floor | Fireproof panel 15mm (yellow) +PVC grain board | |
| 10 | Door panel | 304 SS door (primary colors)
W*H: 1520mm*2200mm, 1 set |
|
| 11 | Sliding window | Aluminum alloy sliding window (white)
W*H: 930mm*1200mm, 8 sets |
About CBOX
Guangdong Cbox covers a series of products such as steel structure workshops, flat pack container houses, modified shipping container houses, detachable container houses, folding container houses, expandable container houses, portable ion, installation, Services, and other one-stop solutions.
After 15 years of hard work by the company’s core team, it has obtained 46 invention patents and utility model patents.
We Guangdong Cbox take the needs of customers as the base, green safe, economical, and comfortable living experience as the root and development of the industry as the purpose.
Comfortable and Stylish
